ReluxCAD for Revit Update 2025 - BIM planning with ease

With the latest release ReluxCAD for Revit 2025, lighting design in complex buildings just got a major upgrade. This version brings powerful new features specifically designed to simplify the planning process for electrical and lighting designers working with staircases and multi-room layouts. The news about the update are available in the video.


All new features at a glance

✅ Plan complex staircases with ease
✅ One-click measurement surfaces across all steps
✅ Cross-room lighting calculation
✅ Target values met? See it instantly – color-coded!
✅ Copy lighting setups to other rooms/floors in seconds
✅ Clear 3D views & intuitive results

👉🏼 Detailed overview

All these improvements are now available in the latest version of the Add-on ReluxCAD for Revit. Update now for free.

Download or test  ReluxReluxCAD for Revit

Update or download to the latest version of the Add-on of ReluxCAD for Revit to take advantage of the latest features, such as the staircase planning and the cross-room lighting calculation.

Download

---

The latest updates at a glance

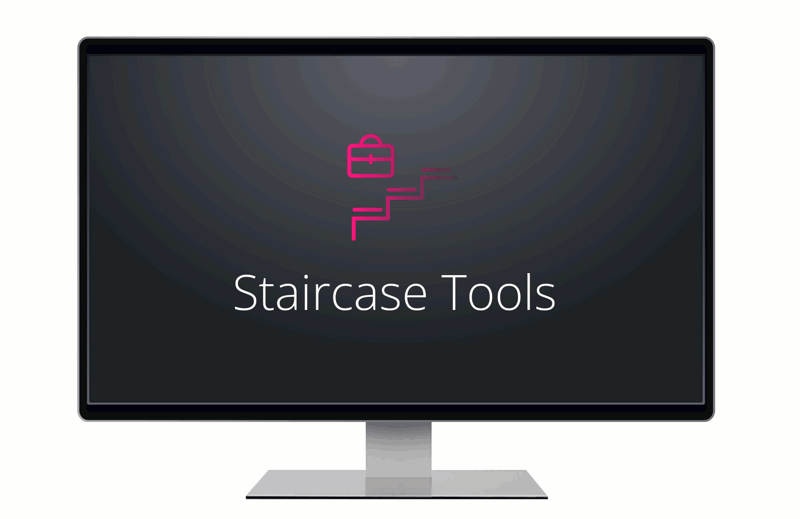

Staircases

Simple planning of complex staircases: several room elements - for example per floor - can now be combined into a single virtual room. For the first time, it is now possible to calculate lighting across multiple rooms, creating measuring surfaces on the entire staircase with just one click.

The automatic 3D staircase view provides clear orientation, and the visual target value display makes it possible to see at a glance where improvements need to be made.

«With the new function for grouping several rooms into a virtual staircase, we enable lighting designers for the first time to perform a consistent calculation across several levels - a real efficiency gain, especially in complex building structures.»

Matthias Wyss, RELUX Informatik AG

Create staircase

This combines the individual room elements into a staircase. The basic room element must be selected when creating (relevant for display in room management).

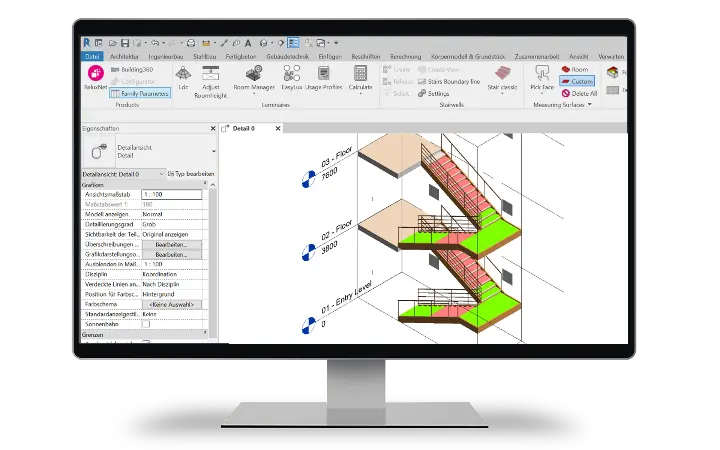

Display setpoint fulfilled/not fulfilled
This function marks the measuring areas that fulfil the set values in green and the others in red.


Select staircase rooms
For easy orientation in the model, this function can be used to select all rooms belonging to a staircase.


Staircase view
A 3D view is generated for the selected staircase, which displays the staircase in isolation and makes planning easier


Dissolve staircase
This function cancels the staircase.

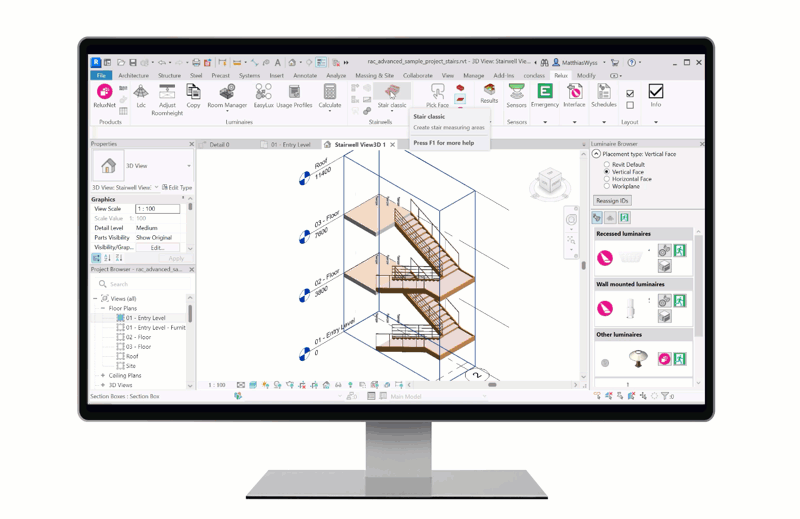

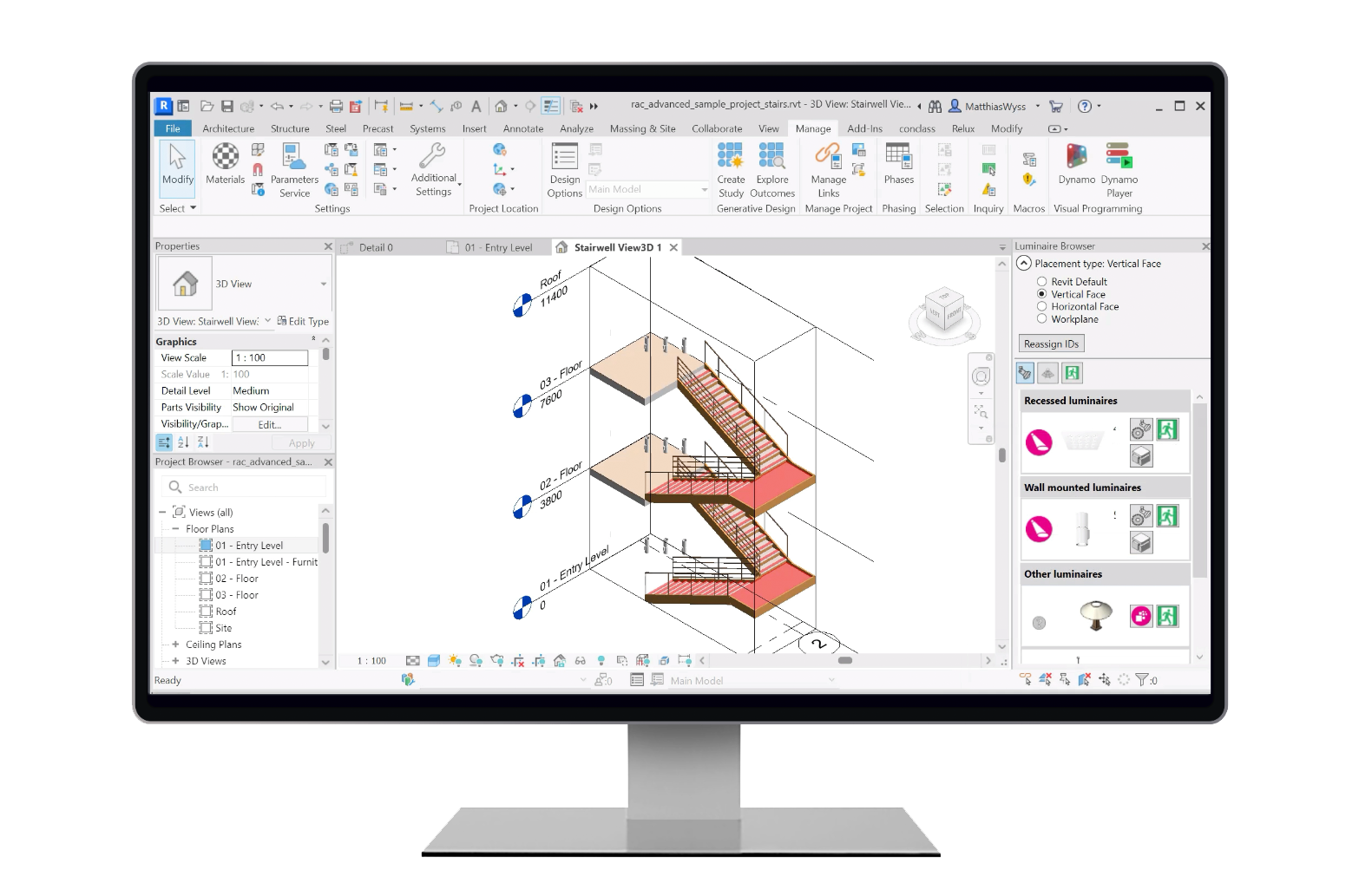

Stair measuring surfaces

This allows the measuring surfaces for stairs to be created automatically with a single click. The following types are available:

- Measuring surfaces for normal artificial light for each step
- Anti-panic surfaces for each step
- An inclined measuring surface for normal artificial light that covers the entire staircase.


Staircase measuring surface settings
Target values
The required average illuminance and uniformity for stairs can be defined.

Step area complete, 2/3, 1/3
The automatically created measurement areas for stairs can either cover the entire surface of the step or only 2/3 or 1/3.

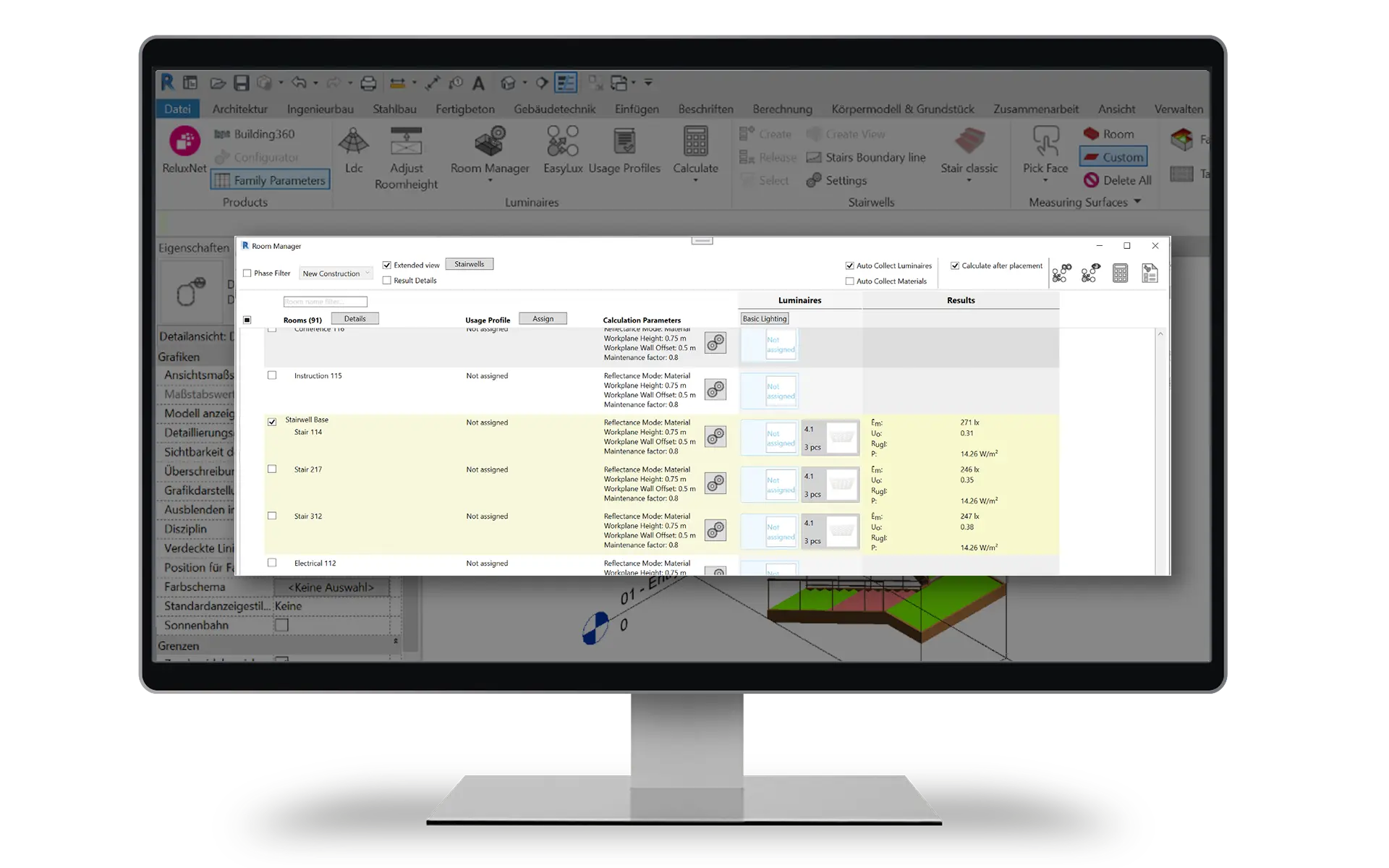

Room management

Staircases
As the room elements of a stairwell are usually located on different levels, but the room management system groups the rooms by level, the stairwells are displayed on the level of the basic room element. The associated rooms are highlighted in yellow to indicate this.

Staircase measuring surfaces
The measuring surfaces for stairs are summarised and displayed as one measuring surface. If required, the individual steps can be displayed with target and calculation values. You can also jump to the desired step in the model here.

Video ReluxCAD for Revit Update

FUN with RELUX Webinar Episode 45

Robert and Matthias will show you the new features of ReluxCAD for Revit update in the webinar.

Video EN   Video DE

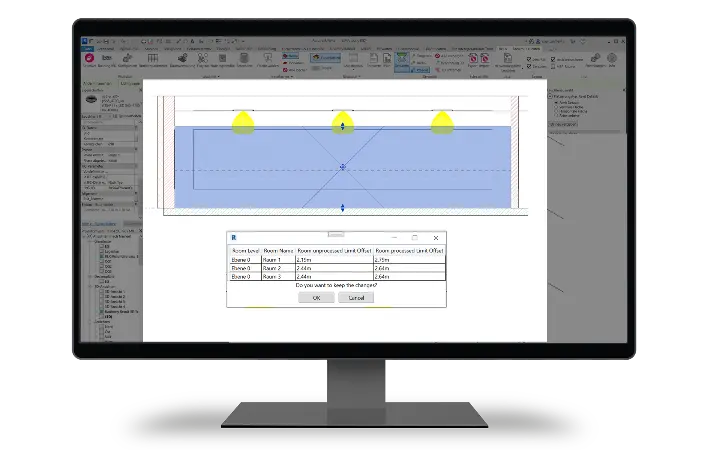

Adjust room height

In projects, the room elements are often not raised up to the physical ceiling of the room. In this case, the luminaires on the ceiling are not included in the calculation. With this tool, the room elements are automatically adjusted to the ceiling. The adjusted heights are displayed to the user in a dialogue for checking purposes.

LDC – Light distribution curve
in the Revit model

Simple display / hide of the light distribution curve in the Revit model. The user does not have to click through the complex Revit menus.

Copy luminaires Quick and easy

Copy all the lights in a room to other rooms with a click of the mouse.Increase productivity and efficiency in planning.
