ReluxCAD for Revit – IFC-Dateien ins RD importieren?

The answer is yes, they can be imported.

Lösung 1

In ReluxDesktop it is now possible to work with an open standard format of BIM (Building Information Modelling), the so-called Industry Foundation Classes (IFC).

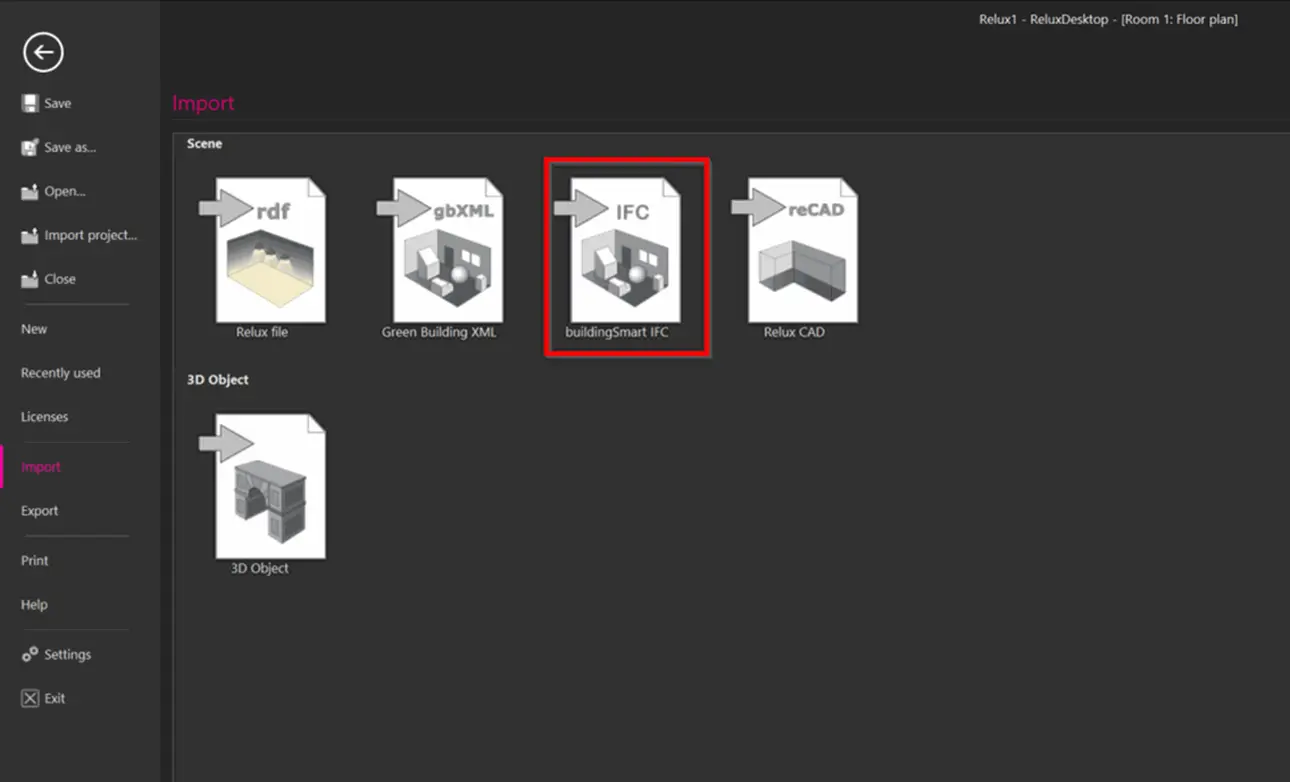

After starting an interior or exterior project the user has the option to import an IFC file under File/import/buildingsmart IFC.

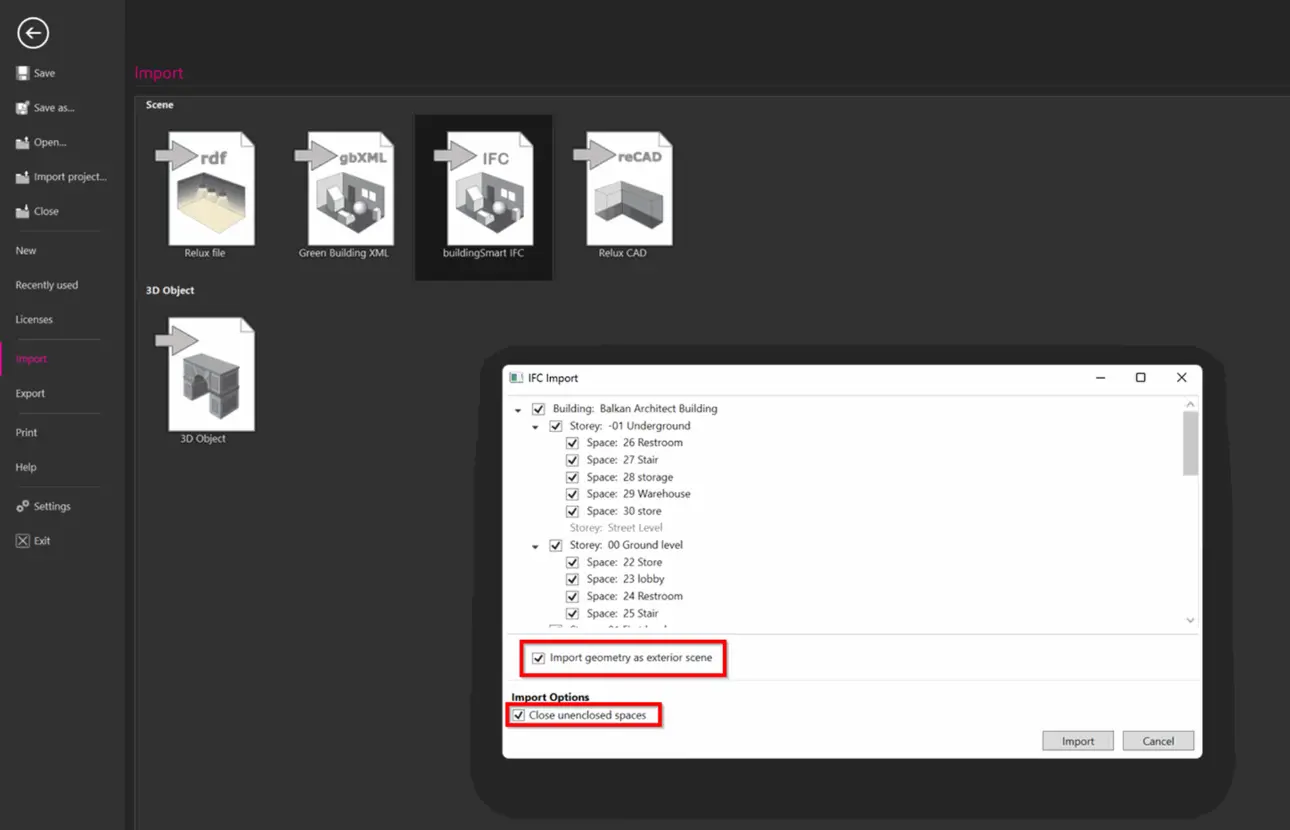

During the loading process of the IFC file following window dialog will pop up.



In this dialog the user can determine which space parameters should be considered in the project. Interior spaces as well as the import geometry from an exterior scene can be chosen. Even to close unclosed spaces can be selected as an option.

If an additional text appears where the information is mentioned (No IFC spaces) are recognized, then just the exterior scene will be considered.

The reason why no IFC spaces are available is because the rooms were not defined in the original BIM project from where the IFC file was created.

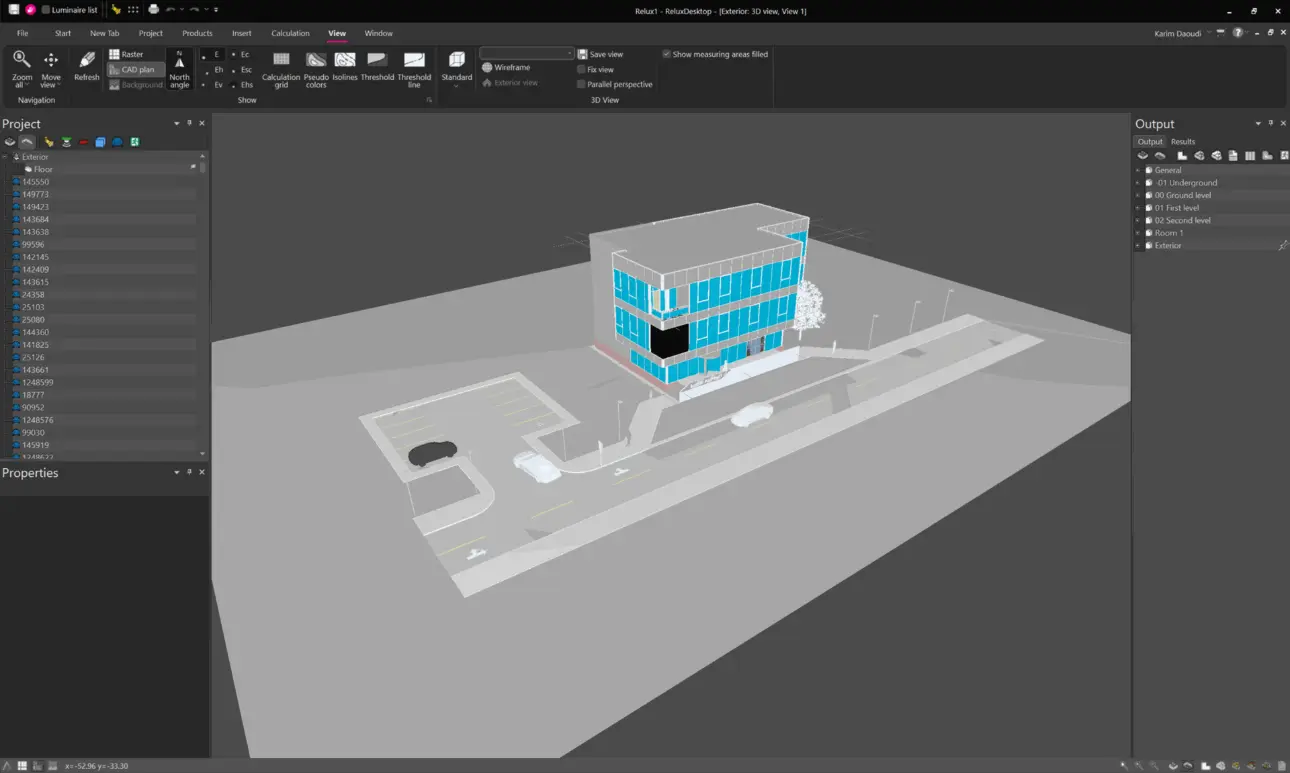

After the loading process of the IFC file in ReluxDesktop is completed, the user can proceed further with the lighting design without considering the construction phase anymore. That’s the main advantage of working with IFC files.




Lösung 2

Wenn Sie im Besitz einer Vollversion von Revit sind, empfehlen wir Ihnen, unser Add-on ReluxCAD für Revit zu installieren und die Lizenz in unserem Online-Shop zu erwerben. >  Shop


Mit dem Add-on ReluxCAD für Revit erhalten Sie ein leistungsfähiges Werkzeug, um die Lichtplanung nach dem Radiosity-Verfahren direkt in Ihrem Revit-Modell durchzuführen oder das Modell über die Export-/Import-Funktionen an ReluxDesktop zu übergeben.





Overview of ReluxCAD for Revit
